技術參數
泵體: 高溫工具鋼，不銹鋼
齒輪: M2鋼,其他材料可指定。
滑動軸承: 高溫工具鋼，不銹鋼。
軸封: 雙端面螺旋密封
加熱系統 : 電加熱
規格/流量范圍: 從0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev
操作參數
粘度: ≤40000 Pas
溫度: ≤400℃
清洗溫度: ≤450℃
進口壓力: 高可達12MPa
高壓差: 可達25MPa

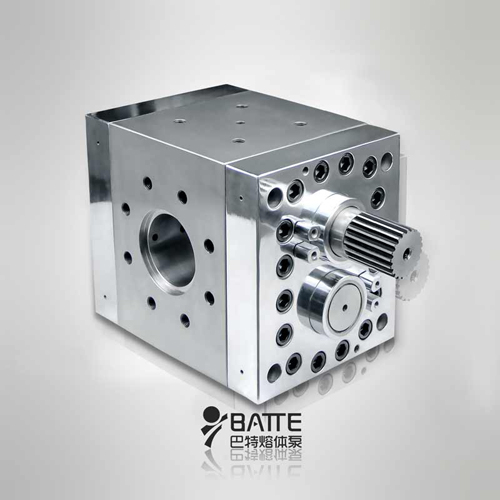

ZB-C Series Reinforced Melt Pump:
ZB-C series reinforced melt pump is mainly used for stabilizing, pressurization and transportation of medium or high viscosity medium from the polymer flow layer. This series of melt pump adopts electrical heating, and applies to PS, PP, PET, PVC, PC, PMMA, PA , etc.
Technical Parameter
Material for Melt Pump Body: High Temperature Tool Steel or Stainless Steel
Material for Gear: M2 Steel (Optional)
Material for Sliding Bearing: High Temperature Tool Steel or Stainless Steel
Shaft Sealing: Double Spiral Sealing
Heating System: Electrical Heating
Model/Volume Range: 0.5CC - 2500CC, 0.5cm3/rev - 2500cm3/rev
Operating Parameter
Viscosity: ≤40000 Pas
Working Temperature: ≤400℃
Cleaning Temperature: ≤450℃
Inlet Pressure: ≤12MPa
Differential Pressure: ≤25Mpa
